[转] github上 fork + Pull Request 开发模式



文章目录



4.1. Fork + Pull模式

参与GitHub中的项目开发,最常用和推荐的首选方式是“Fork + Pull”模式。在“Fork + Pull”模式下,项目参与者不必向项目创建者申请提交权限,而是在自己的托管空间下建立项目的派生(Fork)。
如果一个开源项目派生出另外的项目,通常意味着项目的分裂和开发团队的削弱,而GitHub中的项目派生则不会,而且正好相反,GitHub中的项目派生是项目壮大的体现。所有的派生项目都会有链接指向原始项目,派生项目没有独立的缺陷追踪系统(ISSUE),而是必须利用创建者本人的项目中的缺陷追踪系统。至于在派生项目中创建的提交,可以非常方便地利用GitHub的Pull Request工具向原始项目的维护者发送Pull Request。
下面以GotGit版本库为例,介绍如何利用GitHub提供的Fork和Pull Request工具实现工作协同。


4 .1.1. 版本库派生

GotGit版本库[1]用于维护《Git权威指南》一书的官网和勘误,下面演示的勘误表修改是由王胜[2]通过GitHub之外的一个缺陷追踪平台报告的[3]。他在报告中,甚至直接用GNU diff格式告诉我该如何修改。

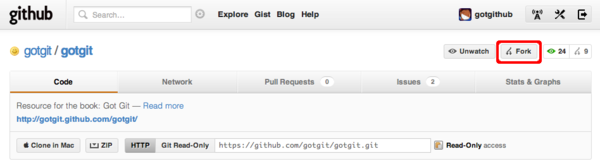

下面就以用户gotgithub身份,访问版本库 https://github.com/gotgit/gotgit/ ,添加新的勘误。如图4-1所示,gotgit项目在之前的示例中已经被我们关注但尚未Fork。

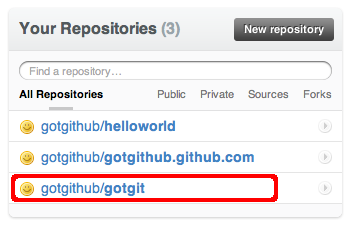

点击项目名称右侧的Fork按钮,便在gotgithub用户自己的托管空间下创建项目派生,派生项目版本库出现在版本库列表中,如图4-2。

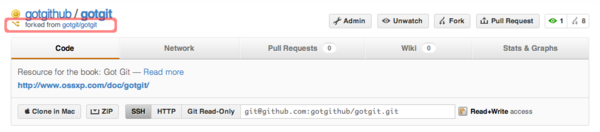

访问派生后的版本库,会发现和派生前的几乎相同,除了没有缺陷跟踪(ISSUE),以及标识了该项目派生之前的原路径等。如图4-3所示。

现在gotgithub用户就在本地派生的版本库中提交。
克隆 gotgithub/gotgit 版本库。

$ git clone git@github.com:gotgithub/gotgit.git
$ cd gotgit

为了向问题的发现者致敬,并经王胜同意,以他的身份进行提交。

$ git config user.name "Wang Sheng"
$ git config user.email wangsheng@ossxp.com

编辑errata.mkd文件[4],录入新发现的书中的文字错误。

$ vi errata.mkd

对error.mkd的改动如下:


$ git diff
diff --git a/errata.mkd b/errata.mkd
index b0b68fb..29e40cf 100644
--- a/errata.mkd
+++ b/errata.mkd
@@ -14,5 +14,6 @@
 |     66 | 倒数第11行                | Author(提交者)             |  Author(作者)              | [Github#2](http://github.com/gotgit/gotgit/issues/2)    |
 |    144 | 第1行                     | \`$ **git rev-parse  A^{tree}  A:**  | $ **git rev-parse  A^{tree}  A:**              | [#153](http://redmine.ossxp.com/redmine/issues/153)  |
 |    218 | 第8行                     | 况下,Gits标识出合并冲突,           | 况下,Git标识出合并冲突,                      | [#159](http://redmine.ossxp.com/redmine/issues/159)  |
+|    369 | 第21行                    | 但 `-i` 参数仅当对一个项执行时才有效。 | 但 `-i` 参数仅当对一个项目执行时才有效。     | [Github#3](http://github.com/gotgit/gotgit/issues/3)    |
 |    516 | 倒数第15行                | **oldtag="cat"**             | **oldtag=\`cat\`**           | [#151](http://redmine.ossxp.com/redmine/issues/151)  |


提交修改。至于提交说明中出现的编号,是为了和缺陷跟踪系统关联,会在后面章节介绍。


$ git add -u
$ git commit -m "Fixed #3: should be 项目, not 项."

推送提交到GitHub。

$ git push

访问GitHub上的派生项目页面,会看到以用户whangsheng在master分支[5]创建的提交。如图4-4所示。



4.1.2. Pull Request

那么如何能够让gotgit原始项目的创建者知道这个派生项目及新的提交呢?GitHub提供的工具就是“Pull Request”。注意到图4-3右上方“Pull Request”按钮了么?点击该按钮进入Pull Request创建界面。
在弹出的Pull Request创建界面中,点击菜单中的“Commits”,查看所包含的提交。如图4-5所示。

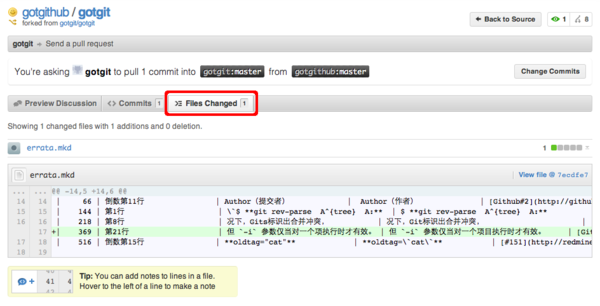

点击菜单中的“Files Changed”,查看所包含的提交。如图4-6所示。

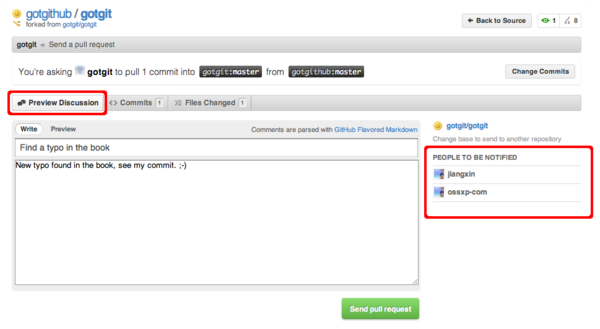

点击菜单中的“Preview Discussion”,填写Pull Request的标题和内容,完成Pull Request的创建。如图4-7所示。

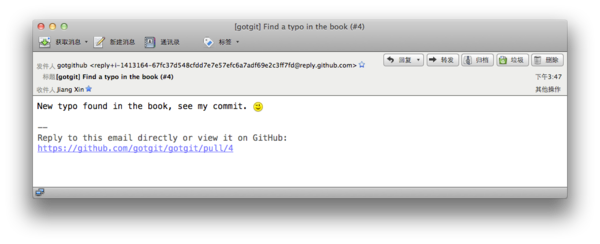

当Pull Request发出后,项目gotgit的开发者会收到通知邮件,如图4-8所示。

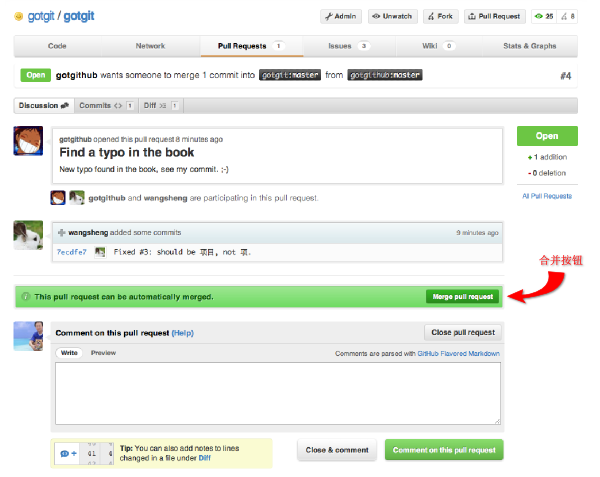

点击邮件中的URL链接,以项目gotgit的开发者(如ossxp-com)身份登录,看到如图4-9的视图。之所以看到有两个用户参与到此Pull Request,是因为Pull Request创建者和提交的作者是不同的用户。图4-9下方的表单可以向Pull Request追加评论,或者关闭此Pull Request。


GitHub如果检测到Pull Request中包含的提交可以直接合并,会显示自动合并的提示信息,点击图4-9中提示信息中的自动合并按钮,显示图4-10的自动合并对话框。

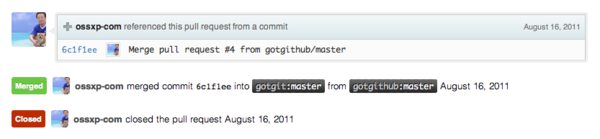

点击“Confirm Merge”按钮即完成Pull Request中所含提交的自动合并。自动合并完成后,Pull Request页面下方会以评论的形式出现相关提示,并自动关闭Pull Request。如图4-11所示。


4.1.3. 手工合并

Pull Request提供的自动合并显示在提交日志中是什么样子的呢?以用户ossxp-com身份检出版本库,会看到用户wangsheng的提交已经合并到版本库中。

$ git clone git@github.com:gotgit/gotgit.git
$ cd gotgit
$ git log --graph -3
*   commit 6c1f1ee152629fd2f8d00ebe92c27a32d068d756
|\  Merge: 00c6c4b 7ecdfe7
| | Author: OpenSourceXpress <worldhello.net@gmail.com>
| | Date:   Tue Aug 16 01:23:47 2011 -0700
| |
| |     Merge pull request #4 from gotgithub/master
| |
| |     Find a typo in the book
| |
| * commit 7ecdfe7451412cfb2e65bb47c12cf2162e21c841
|/  Author: Wang Sheng <wangsheng@ossxp.com>
|   Date:   Tue Aug 16 10:17:53 2011 +0800
|
|       Fixed #3: should be 项目, not 项.
|
* commit 00c6c4bfab9824bd967440902ce87440f9e87852
| Author: Jiang Xin <worldhello.net@gmail.com>
| Date:   Wed Aug 3 11:50:31 2011 +0800
|
|     Change font color for stronger text from red to brown.

可以看出GitHub的自动合并产生了一个合并提交,类似执行git merge --no-ff命令。也就是说即使用户wangsheng的提交是一个“快进式提交”(基于gotgit/gotgit版本库最新提交所做的提交),也要产生一个合并提交。
可能有人并不喜欢这种用--no-ff参数的非标准的合并方式,因为这种合并产生了一个多余的提交,可能增加代码评审的负担。若要取消GitHub的自动合并也很简单,因为Git无所不能:

$ git reset --hard HEAD^  # 回退一个提交,即回退到当前提交的第一个父提交
$ git rev-parse HEAD      # 检查是否正确的回退
00c6c4bfab9824bd967440902ce87440f9e87852
$ git push -f             # 强制推送回退的 master 分支

下面就演示一下当收到他人的Pull Request后,该如何手动合并。实际上在很多情况下,Pull Request所含提交有可能造成合并冲突,那样的话GitHub不再、也不能提供自动合并功能,就必须采用手工合并的方式。
将Pull Request发出者的派生版本库添加为一个新的源。
例如收到来自gotgithub用户的Pull Request,不妨以gotgithub为名添加新的源。

$ git remote add gotgithub https://github.com/gotgithub/gotgit.git

此时版本库中有两个源,一个克隆时自动建立的origin,另外一个就是新增加的gotgithub。

$ git remote -v
gotgithub       https://github.com/gotgithub/gotgit.git (fetch)
gotgithub       https://github.com/gotgithub/gotgit.git (push)
origin  git@github.com:gotgit/gotgit.git (fetch)
origin  git@github.com:gotgit/gotgit.git (push)

获取远程版本库gotgithub的分支和提交。

$ git fetch gotgithub
From https://github.com/gotgithub/gotgit
 * [new branch]      gh-pages   -> gotgithub/gh-pages
 * [new branch]      master     -> gotgithub/master


现在除了本地分支master外,还有若干远程分支,如下:

$ git branch -a
* master
 remotes/gotgithub/gh-pages
 remotes/gotgithub/master
 remotes/origin/HEAD -> origin/master
 remotes/origin/gh-pages
 remotes/origin/master

将远程分支remotes/gotgithub/master(可简写为gotgithub/master)合并到当前分支中。

$ git merge gotgithub/master
Updating 00c6c4b..7ecdfe7
Fast-forward
errata.mkd |    1 +
1 files changed, 1 insertions(+), 0 deletions(-)

查看提交说明,看到此次合并没有产生不必要的合并提交。

$ git log --graph -2
* commit 7ecdfe7451412cfb2e65bb47c12cf2162e21c841
| Author: Wang Sheng <wangsheng@ossxp.com>
| Date:   Tue Aug 16 10:17:53 2011 +0800
|
|     Fixed #3: should be 项目, not 项.
|
* commit 00c6c4bfab9824bd967440902ce87440f9e87852
| Author: Jiang Xin <worldhello.net@gmail.com>
| Date:   Wed Aug 3 11:50:31 2011 +0800
|
|     Change font color for stronger text from red to brown.

将合并推送到GitHub版本库中。

$ git push

4.1.4. 在线编辑

GitHub提供了在线编辑功能,这样可以无需克隆版本库、无需使用Git即可完成对版本库中文件的修改,甚至可以在你的iPad甚至iPhone上完成对文件的修改。

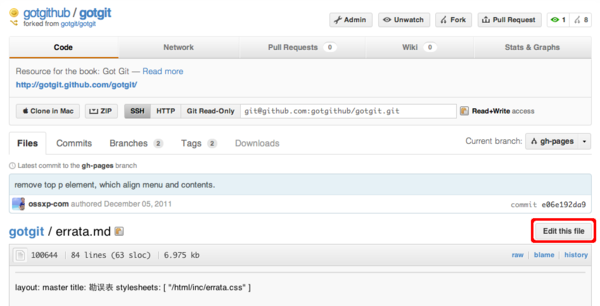

以gotgithub账户身份登录GitHub,访问之前派生而来的版本库gotgithub/gotgit中的文件,例如文件errata.md[6],会看到其中一个“Edit this file”的按钮,如图4-12所示。


点击图4-12中的“Edit this file”按钮,开始在线编辑文件errata.md,编辑器还支持语法加亮,如图4-13所示。


4.1.5. 简化的 Fork + Pull Request

到目前,我们已经了解了GitHub的三大武器:Fork、Pull Request和在线编辑。对于最常用的“Fork + Pull Request”操作,GitHub还提供了一个快捷模式。即GitHub对于无权更改的他人版本库中的文件,提供了一个类似在线编辑的按钮,名为“Fork and edit this file”按钮,自动完成版本库派生和在线编辑,即将三大武器一勺烩。

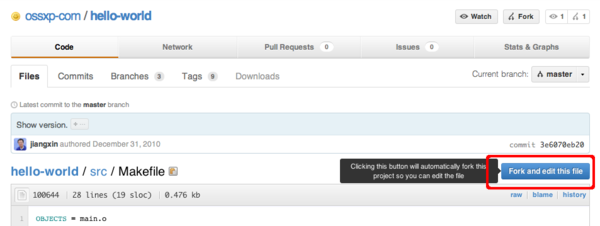

访问他人版本库(尚未在自己空间派生)中的文件,例如访问下面地址:http://git.io/hello-world-makefile[7]。显示他人(ossxp-com)版本库hello-world中的src/Makefile文件,如图4-14所示。

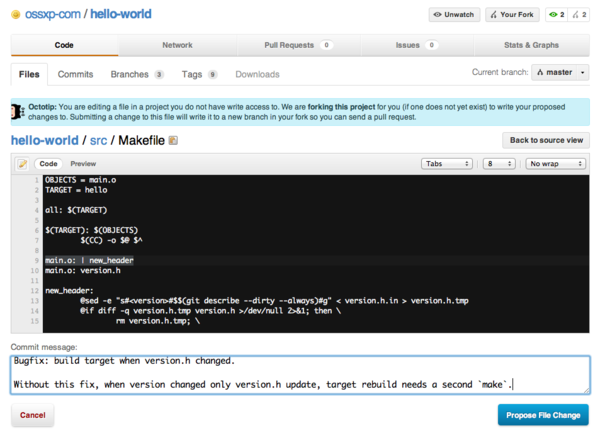

点击图4-14中的“Fork and edit this file”按钮,会自动在自己托管空间创建派生版本库,并开始在线编辑文件src/Makefile,如图4-15所示。

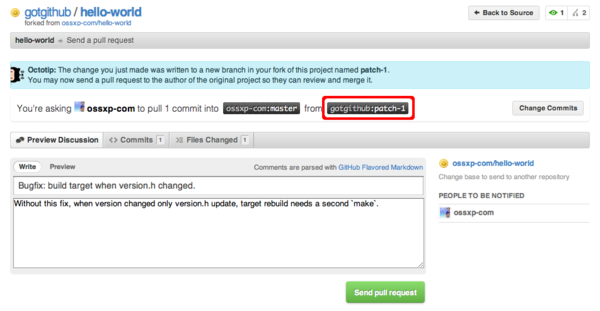

文件修改完毕,点击“Propose File Change”按钮,会将改动作提交到派生的版本库中,并马上开启一个新的Pull Request。如图4-16所示。

点击“Send pull request”按钮完成Pull Request的创建。如果仔细查看图4-16,会发现Pull Request所包含的修改发生在gotgithub/hello-world派生版本库中的patch-1分支中,并非通常的master分支。
原版本库ossxp-com/hello-world的开发者会收到一封邮件,通知有新的Pull Request,如下所示(前四行为信头):

From: GotGitHub <reply+i-...@reply.github.com>
Date: 2011/12/17
Subject: [hello-world] Bugfix: build target when version.h changed.  (#1)
To: Jiang Xin <worldhello.net@gmail.com>


Without this fix, when version changed only version.h update, target rebuild needs a second `make`.

You can merge this Pull Request by running:

 git pull https://github.com/gotgithub/hello-world patch-1

Or you can view, comment on it, or merge it online at:

 https://github.com/ossxp-com/hello-world/pull/1

-- Commit Summary --

* Bugfix: build target when version.h changed.

-- File Changes --

M src/Makefile (3)

-- Patch Links --

 https://github.com/ossxp-com/hello-world/pull/1.patch
 https://github.com/ossxp-com/hello-world/pull/1.diff

---
Reply to this email directly or view it on GitHub:
https://github.com/ossxp-com/hello-world/pull/1

版本库ossxp-com/hello-world的管理员既可以通过GitHub提供的图形化界面完成对 Pull Request 的审核和合并,也可以在命令行下完成。正如邮件中所述若使用命令行,操作如下:

$ git pull https://github.com/gotgithub/hello-world patch-1

[1] https://github.com/gotgit/gotgit/
[2] https://github.com/wangsheng/
[3] http://redmine.ossxp.com/redmine/issues/161
[4] 版本库 gotgit/gotgit 已将勘误文件重命名为errata.md。
[5] 版本库 gotgit/gotgit 原master分支内容已转移至gh-pages分支,通过GitHub提供的网站部署机制完成网页的编译和部署。
[6] 版本库 gotgit/gotgit 已重构。分支gh-pages中文件errata.md文件来自于原master分支的errata.mkd文件,地址:https://github.com/gotgithub/gotgit/blob/gh-pages/errata.md
[7] 即地址 https://github.com/ossxp-com/hello-world/blob/master/src/Makefile
